Extreme Power, Maximum Durability, Built for New Zealand’s Toughest Earthmoving

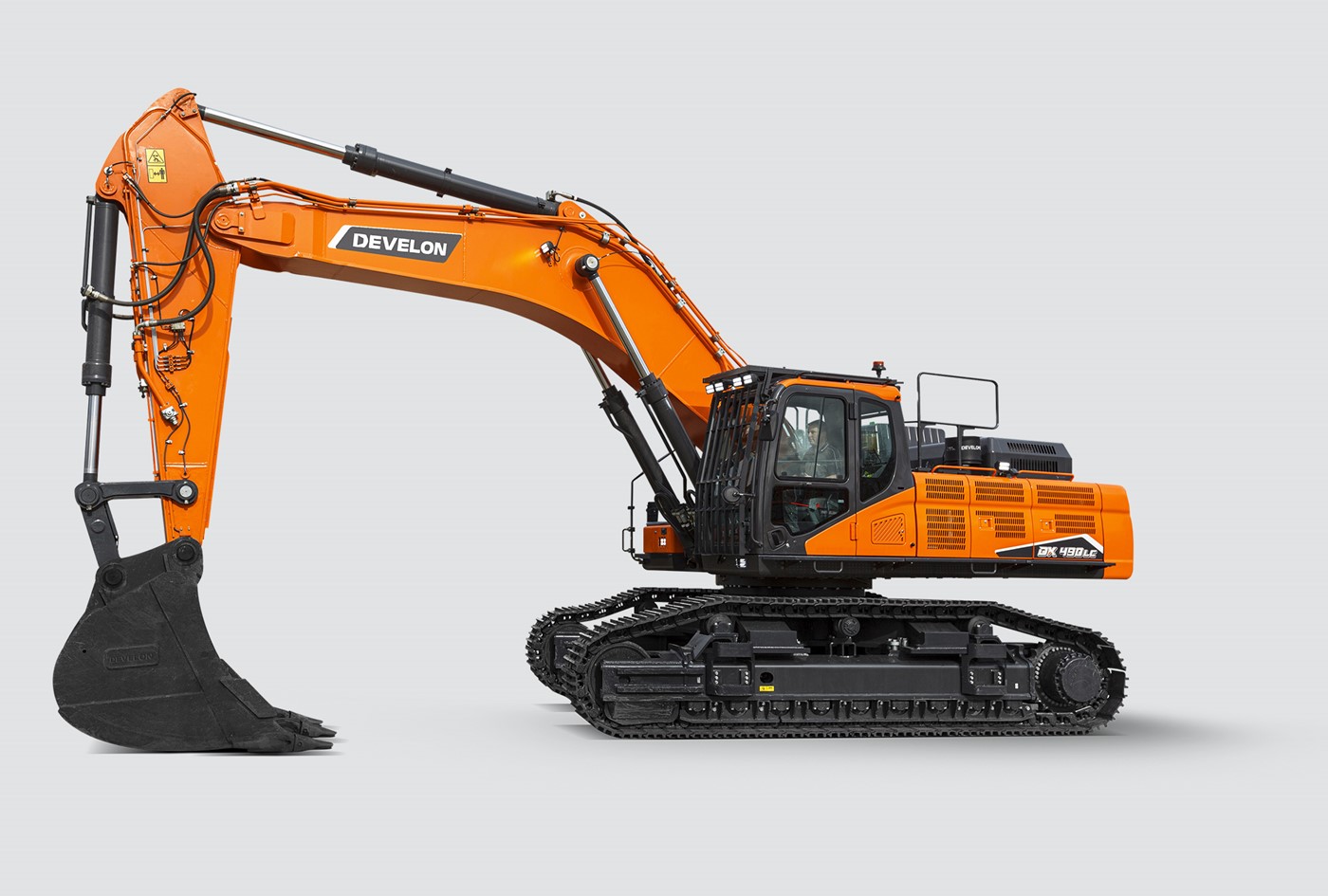

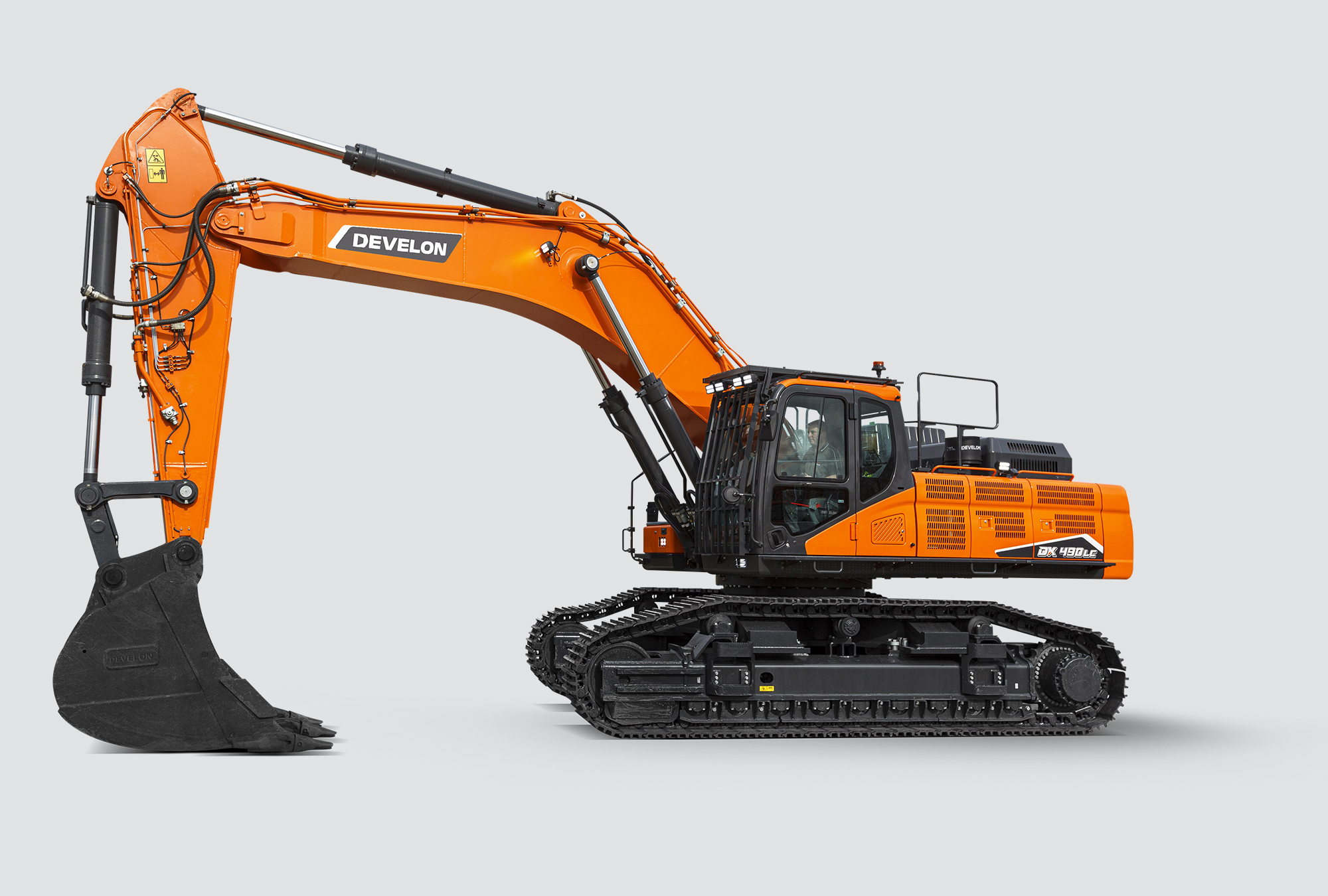

The DEVELON DX490LC-7M is a high capacity 49 tonne crawler excavator engineered for maximum productivity in heavy civil construction, quarrying, large scale earthworks, and mining applications across New Zealand. With exceptional breakout force, enhanced hydraulic performance, and a reinforced structural design, the DX490LC-7M delivers the endurance and control needed for the harshest environments.
Power & Performance.
Powered by the Scania DC13 engine producing 294 kW with 1,930 Nm of torque, the DX490LC-7M provides outstanding digging and lifting power with smooth, reliable operation under extreme load. High pressure fuel injection and electronically controlled engine management ensure strong torque characteristics, reduced fuel consumption, and efficient response in demanding excavation cycles. The upgraded EPOS hydraulic system precisely matches engine output with pump flow, enabling higher efficiency, faster cycle times, and improved precision during complex digging and loading tasks.
Hydraulics.

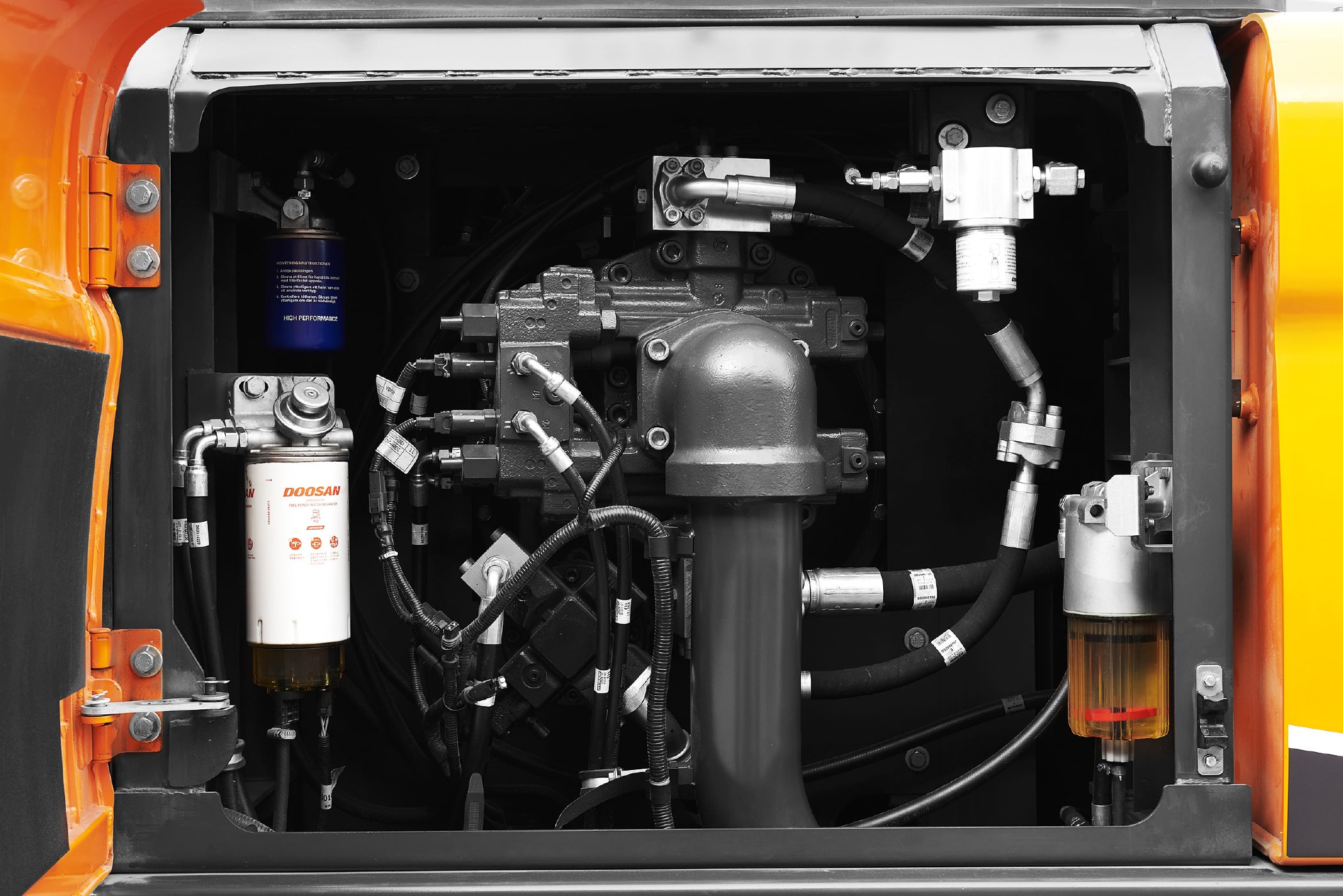

The hydraulic system features dual 390 L per minute pumps, highly responsive control valves, and advanced pump matching technology to reduce wasted energy, maintain consistent performance, and minimise fuel burn. Relief cut off, auto idle, and selectable power modes allow operators to tailor machine behavior to challenging ground conditions while maintaining smooth movement and superior controllability. A heavy duty swing drive increases swing torque for rapid cycles, reduced rotation shock, and improved stability during repetitive truck loading.
Durability.
Durability is a standout strength of the DX490LC-7M. Reinforced boom and arm structures use thicker plates, forged pivot points, and strengthened castings to withstand high-impact materials. The undercarriage includes a heavy duty X-frame, improved sprocket design, abrasion-resistant plates, and integrated track spring and idler systems for superior stability and wear life. Larger and wider track options further enhance ground pressure distribution, productivity, and machine balance on steep, rocky, or uneven terrain typical of New Zealand worksites.
The Cabin.
Inside the cab, operators benefit from a spacious, low-noise environment designed for long operating hours. Features include an adjustable air suspension seat, refined climate control, clear visibility, ergonomic joystick layout, and an 8 inch touchscreen monitor for machine settings and data. Optional side and rear-view cameras, LED work lights, and safety guarding systems support safer operation on busy civil and quarry sites.
Maintenance.

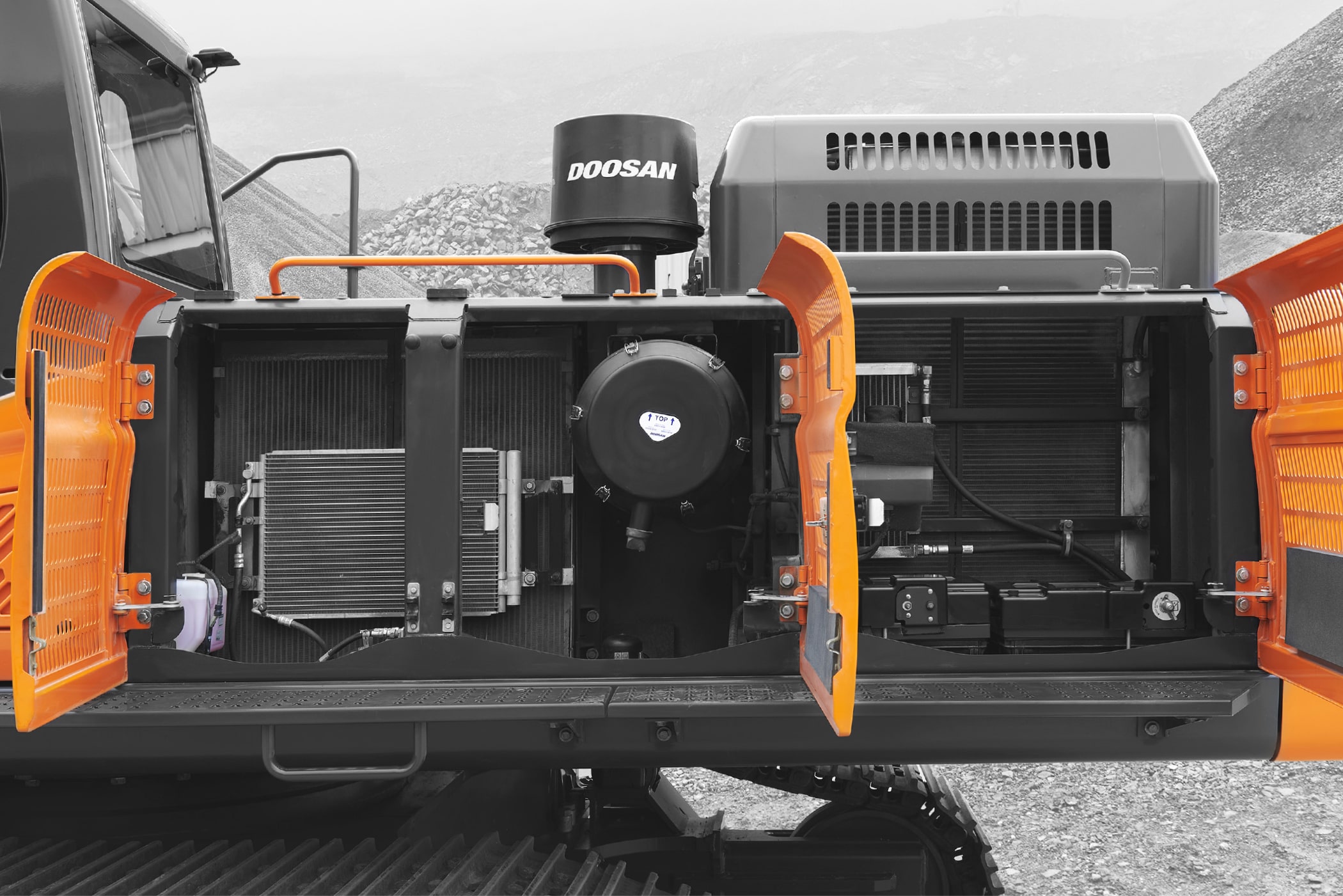

Maintenance is streamlined with grouped grease points, a single catwalk with anti slip access, large capacity air filtration, improved water separation, and easy access service panels. The machine supports reduced downtime through enhanced component protection, advanced filtration systems, and optional DEVELON Fleet Management for real time monitoring of operating hours, fuel use, fault alerts, and maintenance scheduling.
Backed by AB Equipment’s nationwide service and parts network, the DEVELON DX490LC-7M delivers extreme power, long term durability, and exceptional performance for New Zealand contractors who need a machine capable of handling the heaviest workloads.
Download the product brochure here: DX490LC-7M
