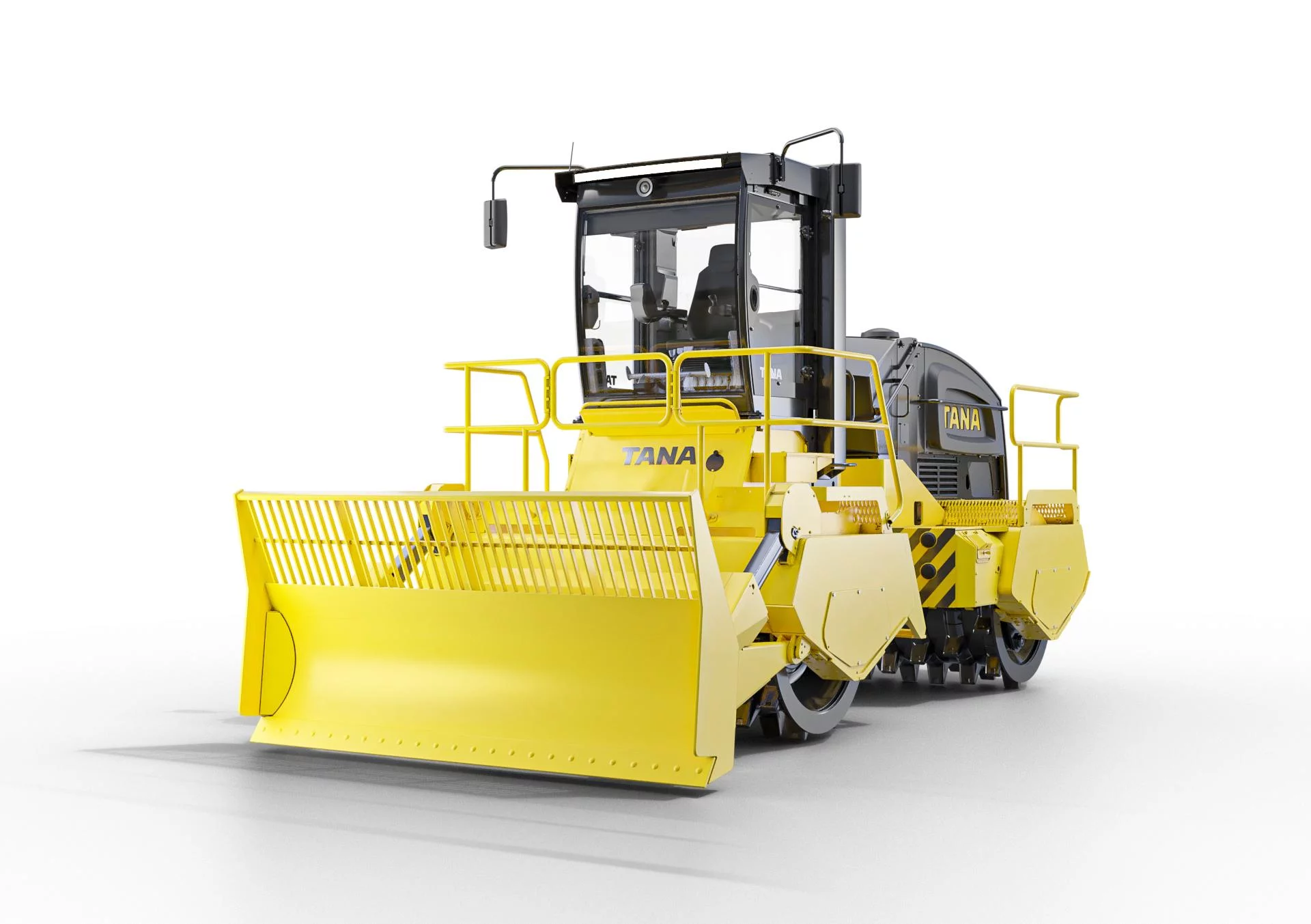

TANA H320 and H320eco Landfill Compactors

Built for demanding landfill operations, the TANA H320 and H320eco landfill compactors combine powerful crushing force, full-width compaction drums and precise machine control to help operators achieve greater waste density with fewer passes.

With an operating weight of approximately 31 to 33 tonnes, a maximum crushing force of up to 160 kN and 2,660 mm compaction drums at both the front and rear, the TANA H320 range is engineered to process, crush and compact waste efficiently across challenging landfill environments.

Powerful Landfill Compaction Performance

The TANA H320 features uniform, full-width drums fitted with forged crushing teeth made from wear-resistant steel. Adjustable scraper bars help keep the drums clear, while integrated wire cutters reduce the risk of waste materials wrapping around the drum ends.

Each drum includes 80 crushing teeth, delivering effective penetration, crushing and compaction across the full machine width. This helps operators create a more uniform waste layer while maximising available landfill capacity.

High-Performance Engine Options

The TANA H320 is available with powerful Cummins diesel engine options designed to deliver the torque required for heavy-duty landfill work.

The Stage V and Tier 4 Final compliant Cummins L9-C365 engine produces up to 272 kW and 1,561 Nm of torque, while the H320eco configuration uses a Cummins QSL9-C325 engine producing up to 261 kW.

Combined with a closed-circuit hydrostatic transmission, separate drive systems for both drums and stepless speed control, the H320 provides smooth, controlled operation across changing waste conditions.

Heavy-Duty Dozer Blade

A robust 3,650 mm-wide dozer blade allows operators to spread, level and shape waste before compaction. Operated by two hydraulic cylinders, the blade provides movement both above and below ground level, helping the machine work effectively across uneven landfill surfaces.

Spacious, Operator-Focused Cabin

The pressurised, heat- and sound-insulated cabin provides excellent visibility across the work area, supporting safer and more efficient operation. Laminated safety glass, air conditioning, adjustable temperature controls and integrated storage help create a comfortable working environment throughout long shifts.

A high-resolution colour touchscreen provides easy access to the TANA Control System, while armrest-mounted joysticks place driving, steering and blade controls within comfortable reach. The integrated ROPS and FOPS cabin structure provides additional protection in demanding operating conditions.

Intelligent Machine Monitoring with TanaConnect®

TanaConnect® provides real-time access to machine condition, performance and operating information. The digital fleet management platform collects and presents data from the landfill compactor, helping operators and fleet managers monitor productivity, plan maintenance and support maximum machine uptime.

Designed for Safety, Serviceability and Uptime

Service platforms and access steps feature handrails and anti-slip surfaces, while the engine and powerpack are protected beneath a lockable hood. The cabin, engine compartment and fuel filling point can also be secured to help protect the machine from vandalism and unauthorised access.

The TANA Control System monitors key machine functions, including engine performance, hydraulic oil temperature, fuel level, gearbox temperatures, system voltage and filter condition. Visual and audible warnings help operators identify potential issues before they result in unnecessary downtime.

Supported by AB Equipment

The TANA H320 and H320eco landfill compactors are available in New Zealand through AB Equipment. With 18 branches nationwide and an experienced service and support network, AB Equipment can assist with machine selection, parts, servicing and ongoing technical support throughout the equipment lifecycle.

Contact AB Equipment to learn more about the TANA H320 range and find the right landfill compactor for your waste management operation.

Key Features

• Approximately 31 to 33 tonne operating weight
• Maximum crushing force of up to 160 kN
• Full-width front and rear compaction drums
• Forged, wear-resistant crushing teeth
• Integrated scraper bars and wire cutters
• 3,650 mm hydraulically operated dozer blade
• Closed-circuit hydrostatic transmission
• Two driving speed ranges with stepless control
• Spacious pressurised cabin with excellent visibility
• High-resolution TANA Control System touchscreen
• Integrated ROPS and FOPS protection
• Real-time fleet monitoring through TanaConnect®

Download the product brochure here: TANA H320 & H320Eco Brochure
