Vermeer

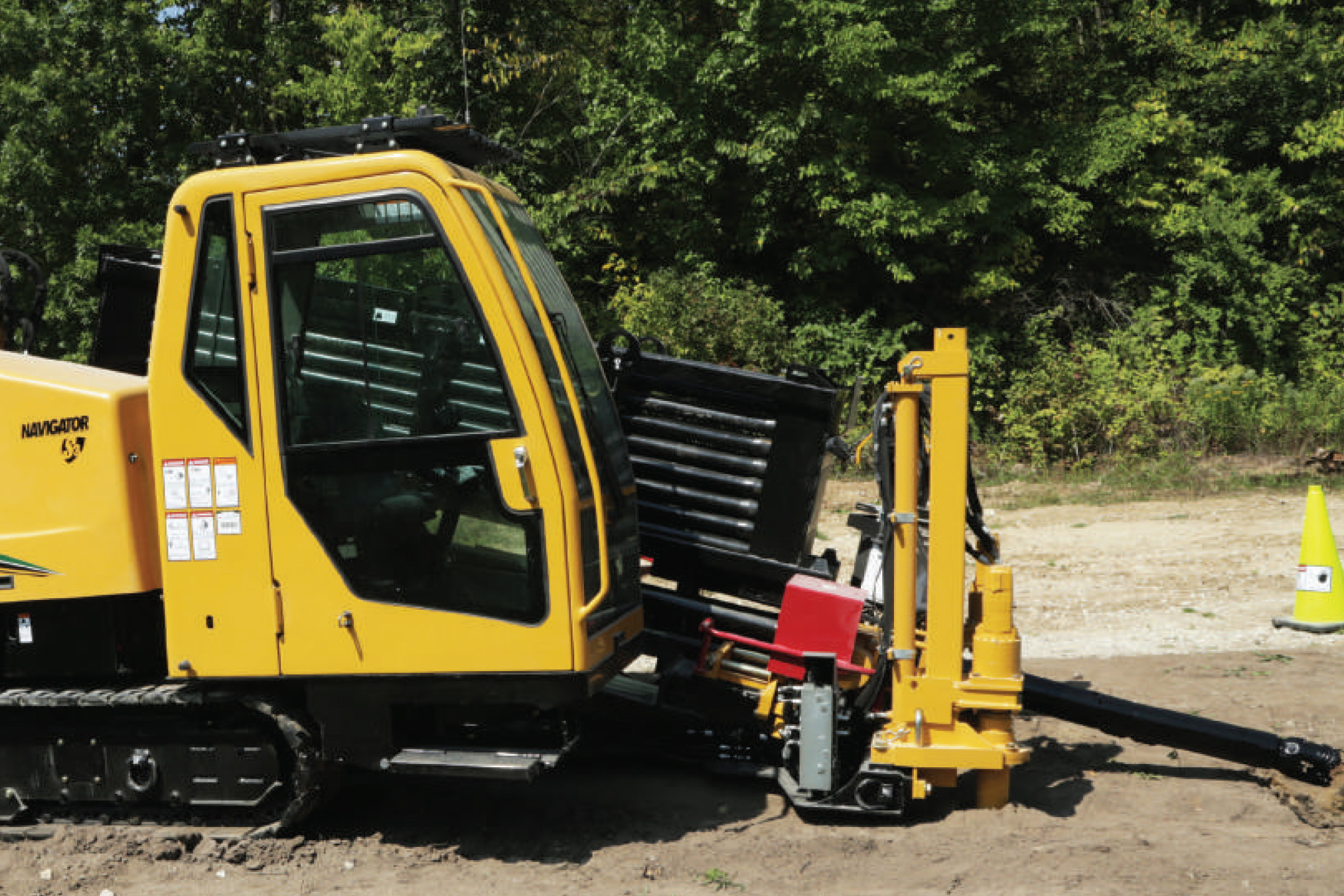

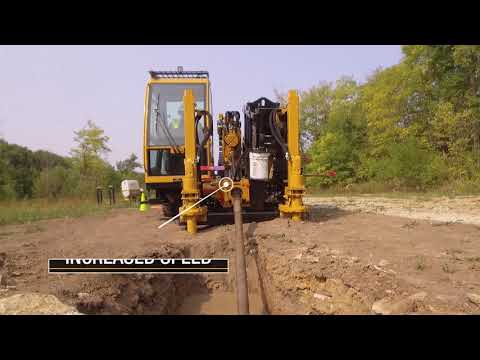

Horizontal Directional Drill - D40x55DRS3


Rock can't stop this rig. The D40x55DR features dual rod technology that uses an inner rod to provide torque to the drill bit, while the outer rod offers steering capability and rotational torque for reaming. This combination provides powerful downhole cutting action with a host of down hole tooling options.

Download the product brochure here: Vermeer HDD D40x55DRS3

Other Models

Length 650cm
Width 226cm
Height 279cm
Weight 14,288kg
Engine 140HP John Deere diesel
Rod diameter Dual Rod - 1.66" inner / 2.625" outer
Thrust / Rotate 40,000lb / 5500 ft-lb
Cabin Full cabin or soft cab canopy
Rod diameter option 1.66" inner / 2.625" outer
Rod length option 3.1m
Mud Pump option 70 gpm
DCI location equipment Optional

Similar Machines

New
Vermeer D60x90 S3 2

Vermeer

Horizontal Directional Drill - D60x90S3

View Details
New
Vermeer D40x55 Hero

Vermeer

Horizontal Directional Drill - D40x55S3

View Details
New
Vermeer D24x40 S3 575X375

Vermeer

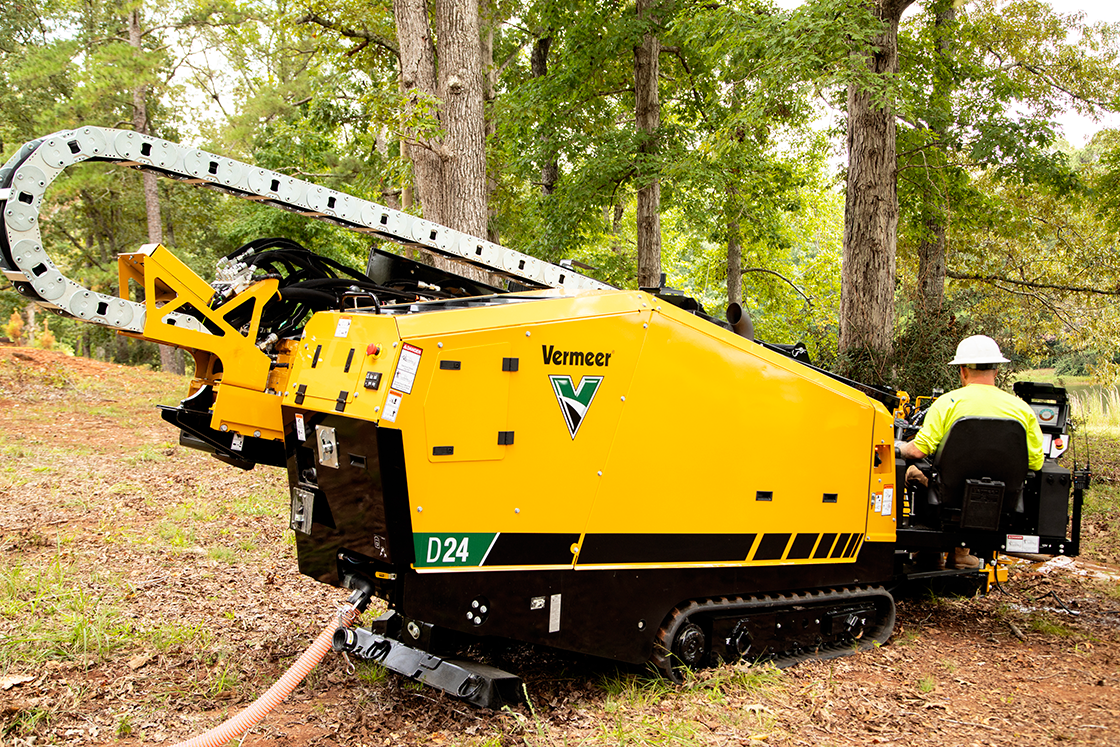

Horizontal Directional Drill - D24x40S3
